FEATURE：

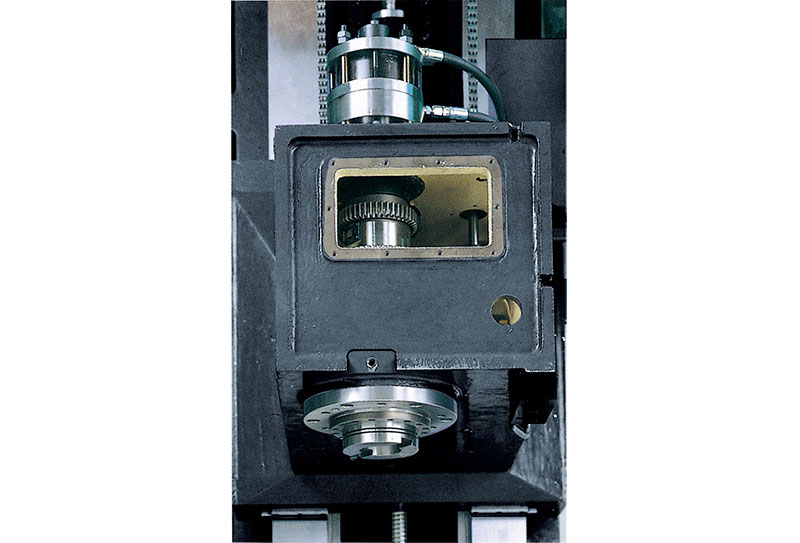

• High rigid construction four slideways on base, ensures high precision machining accuracy.
• A 11 kw / 15 kw (15 HP / 20 HP) spindle motor with 2-step gear transmission provide a high revolution up to 4400 rpm.
• The spindle is supported by grease packed precise angular contact ball bearing to minimize heat generation.
• The lubricant for both spindle and the gear box is forced-cooled by the standard oil cooling system to ensure protection from thermal displacement.
• The 24-station rotary-type tool magazine is driven by a cam unit (KMC-1100V)

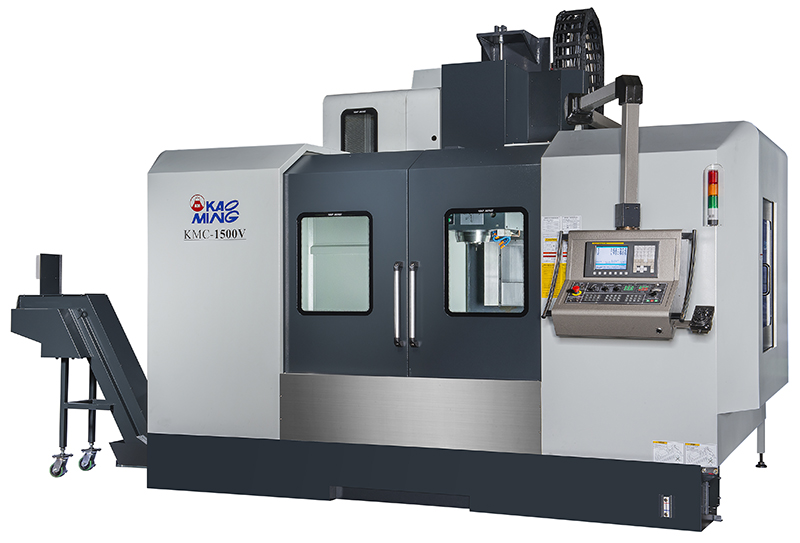

• The 32-station chain-type tool magazine is driven by an electric motor (KMC-1500V)

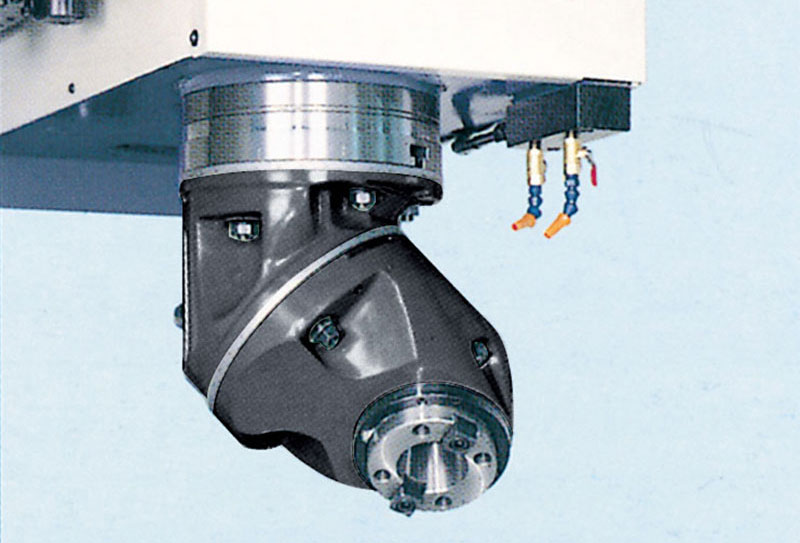

• An universal angle head (optional) can widely extend machining application.

FEATURE：

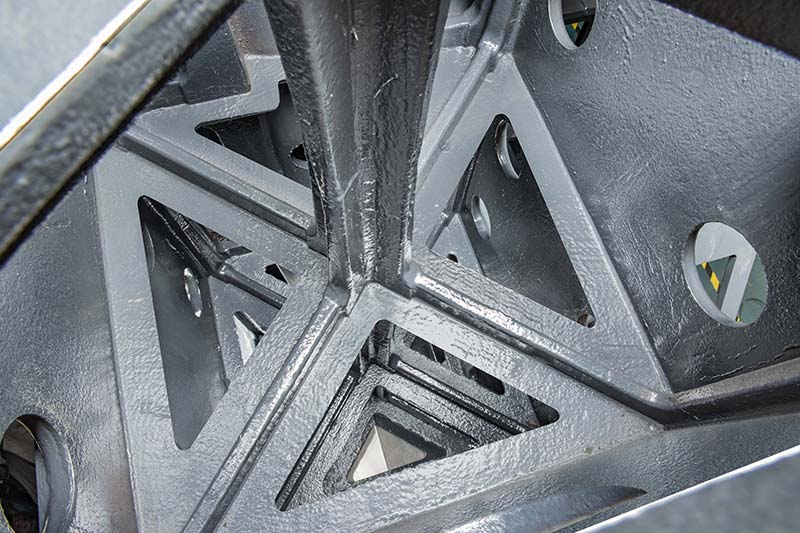

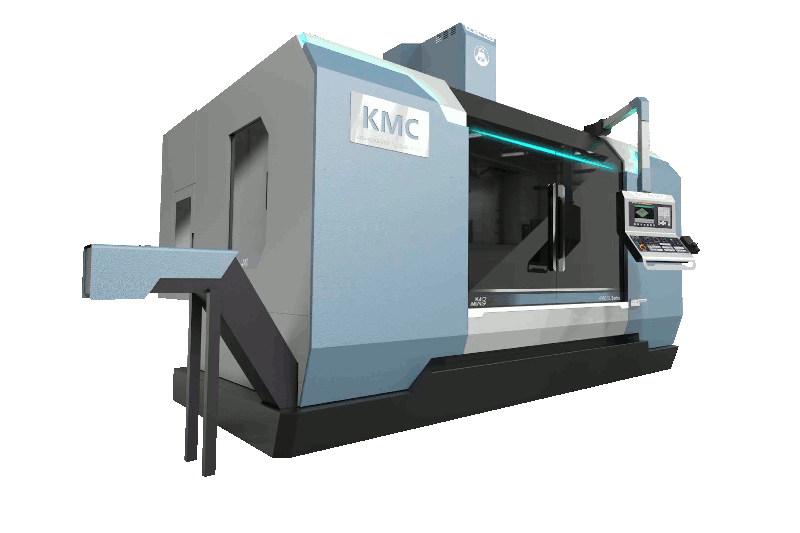

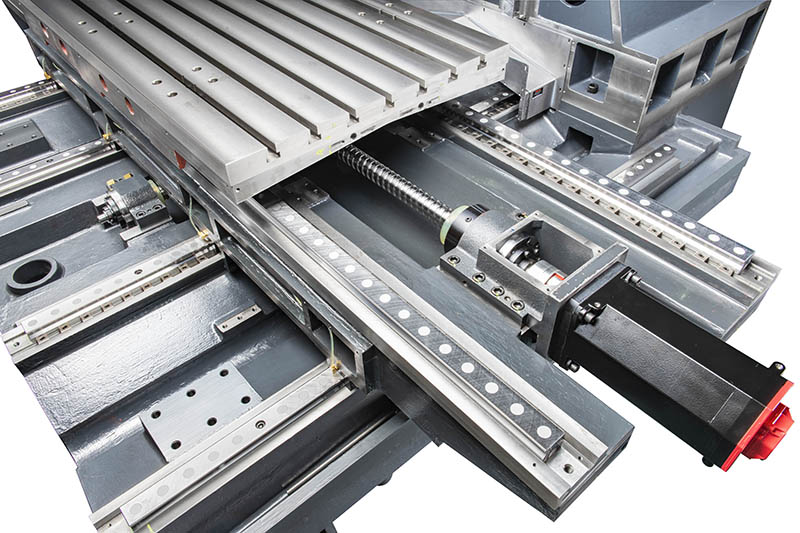

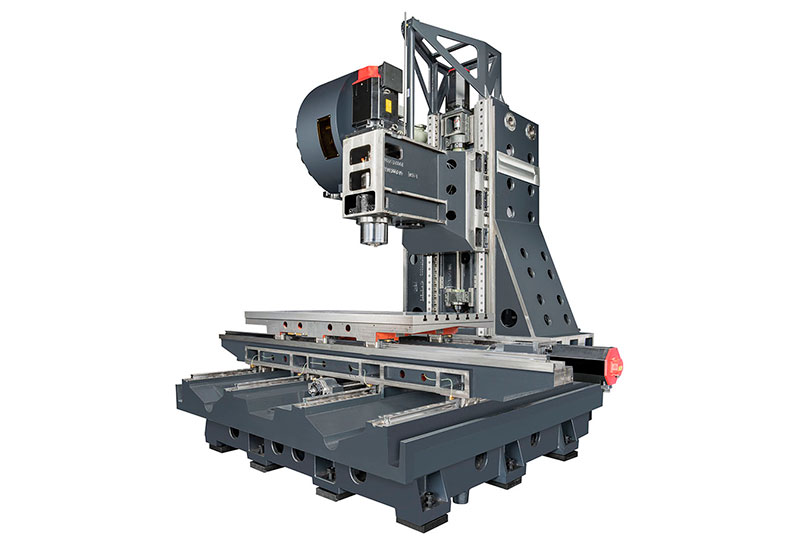

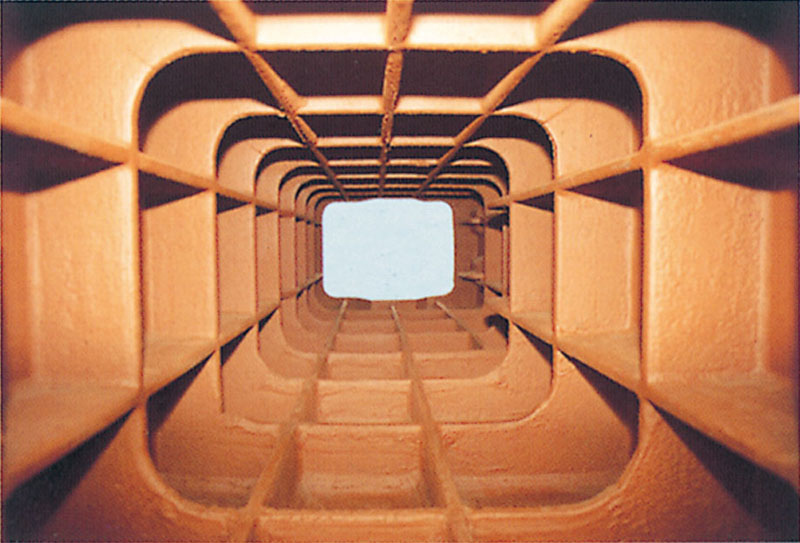

KMC-CE high-speed vertical machining center with high rigidity and stability gains a great score on Fanuc evaluation cutting test. Apply Japan's top brand linear guideway, THK, and increase sliders on all three axes to enhance loading capacity response time for machining. Different from the common box type with internal rib, utilize the keel design with stronger bending resistance. Larger the table base to provide strong full support without overhang problem. The design of the inner cooled ballscrew, coolant system in the bearing seat, and motor board with cooling circuit are to reduce thermal growth. 32-36 m/min unmatched rapid traverse rate beyond the industry average level. Increase the slope level of cover to enhance the chip removal capacity.

CE series possess different sizes from X axis：1100mm-1600mm, Y axis：550 mm -800 mm, Z axis：610 mm -800 mm with high precision direct drive spindle 10000 - 12000rpm. Max. table load from 1.2-1.7 tons meet different manufacturing needs. It can be applied to automobiles, home appliances die mold fine milling, and small workpiece manufacturing

Features：

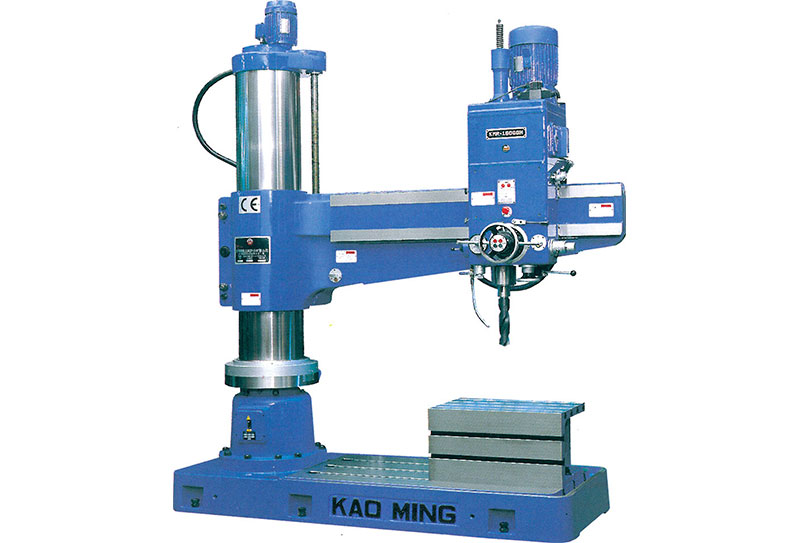

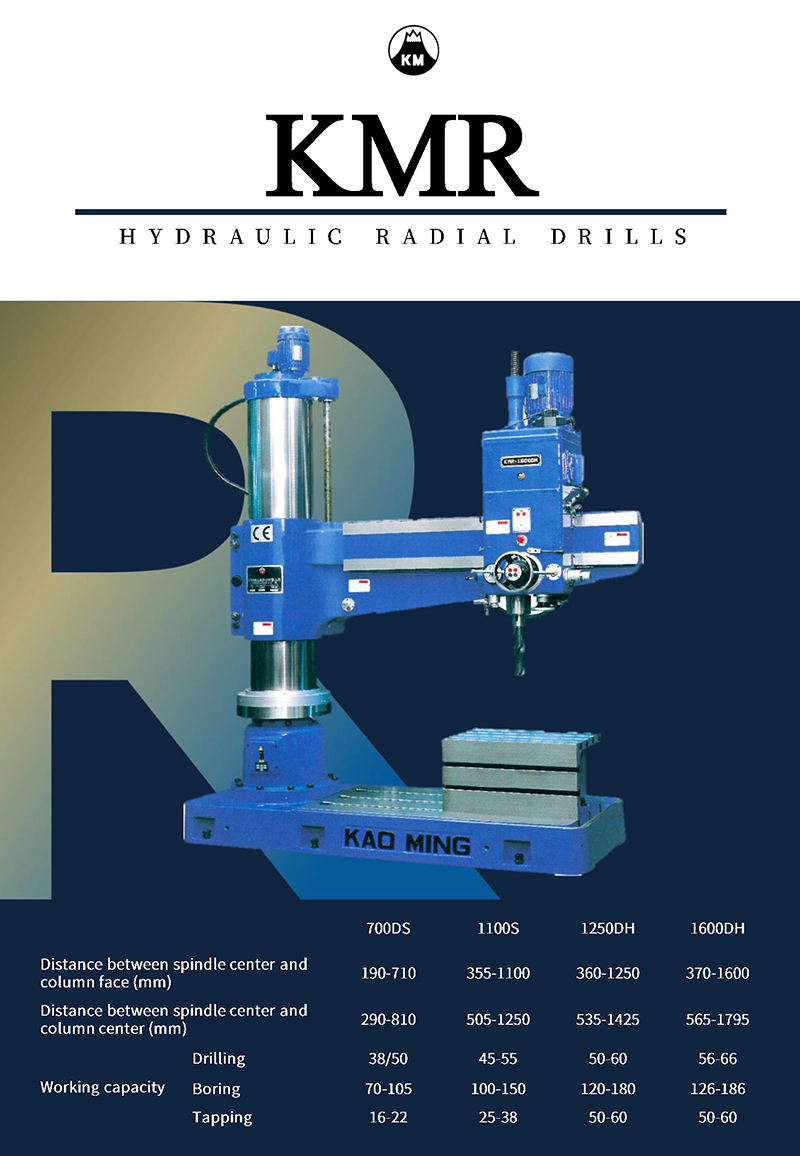

For operating the spindle head, a front operation system made with compact handles & push buttons can be used from the standpoint of the operator, facilitating working process while improving efficiency.

A pre-selected hydraulic pressure system is set for changing the spindle speed through 12 stages in coordination with the feed rate for a wide range of applications.

A multiple disc clutch allows for starting and stopping the spindle in order to repeat normal and reverse operations smoothly.

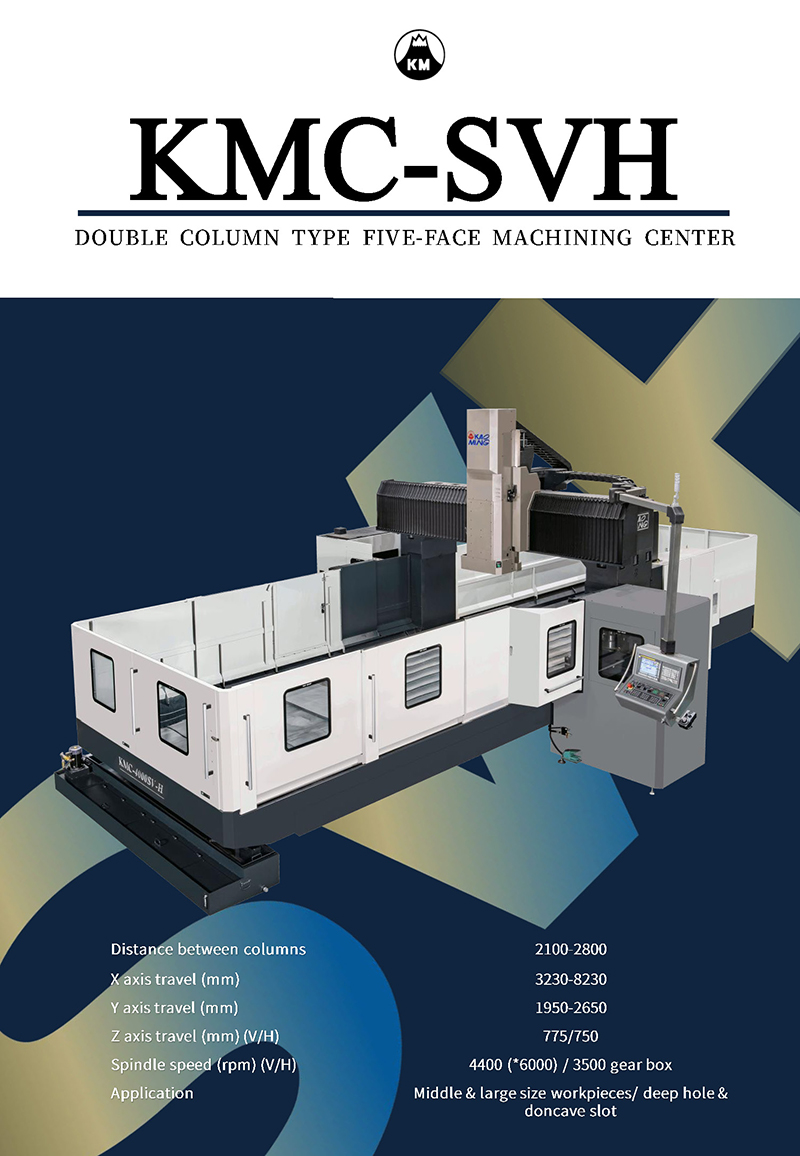

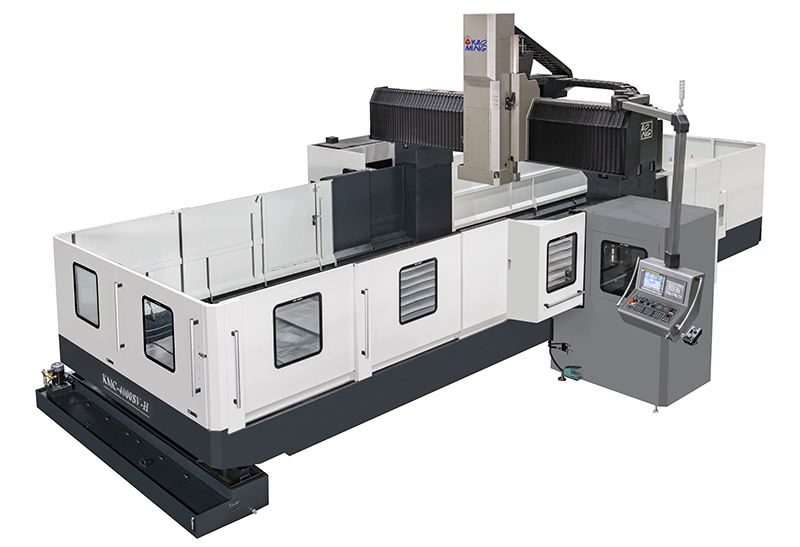

Features：

The X, Y and Z axis are fully support by rigid box ways.

All surfaces that make contact with the slideways are lined with Turcite-B to ensure long lasting and optimum rigidity during heavy cutting conditions.

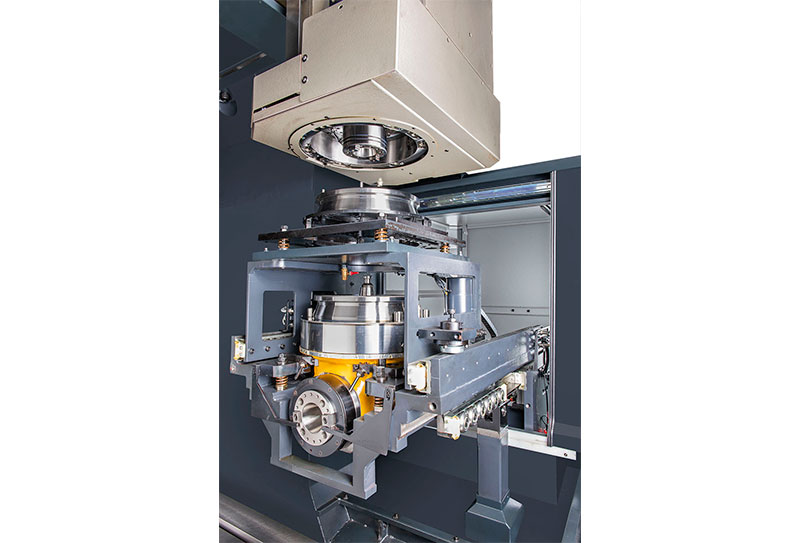

Combines the advantages of machining all 4 sides with angular attachment and machining the top face with vertical spindle head in one set-up.

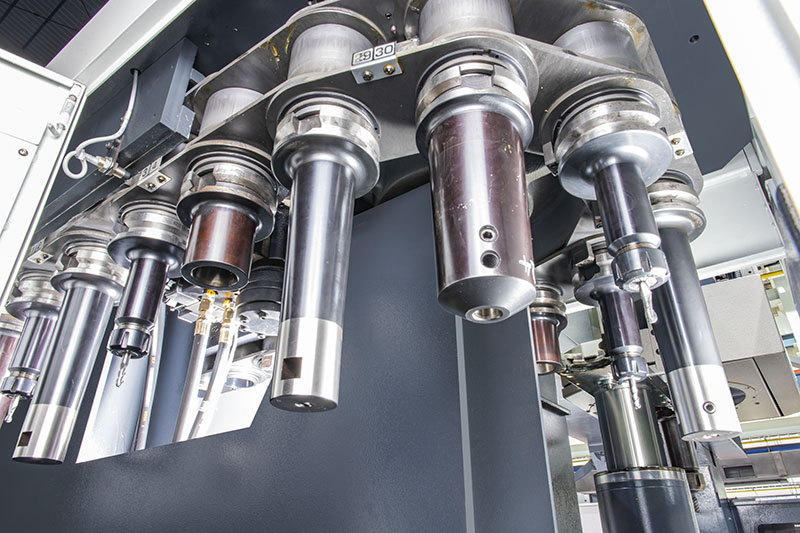

2-station AAC magazine is located at the CRT side includes an automatic opening door, protecting the attachments from chips and coolant.

Since the spindle is driven by a powerful 26 KW (35 HP) spindle motor and through two-speed transmission by gears, the maximum spindle torque is a powerful 780 Nm (575 ft-lb), allowing heavy-duty cutting.

Tool can be easily unloaded/loaded from the horizontal spindle by operating a foot-switch.
