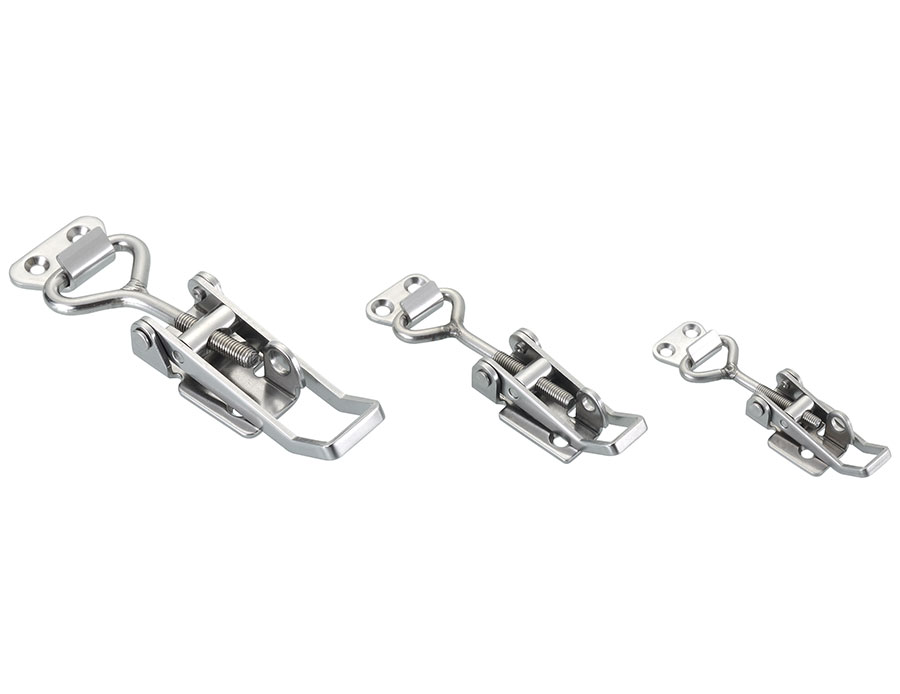

CS(T)-02 series

• Material: SUS304(Stainless steel)-vibration ground, SPCC(cold-rolled steel)-zinc plated

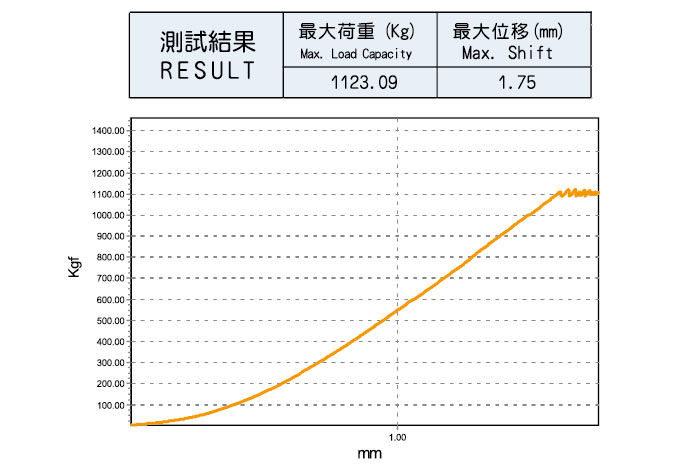

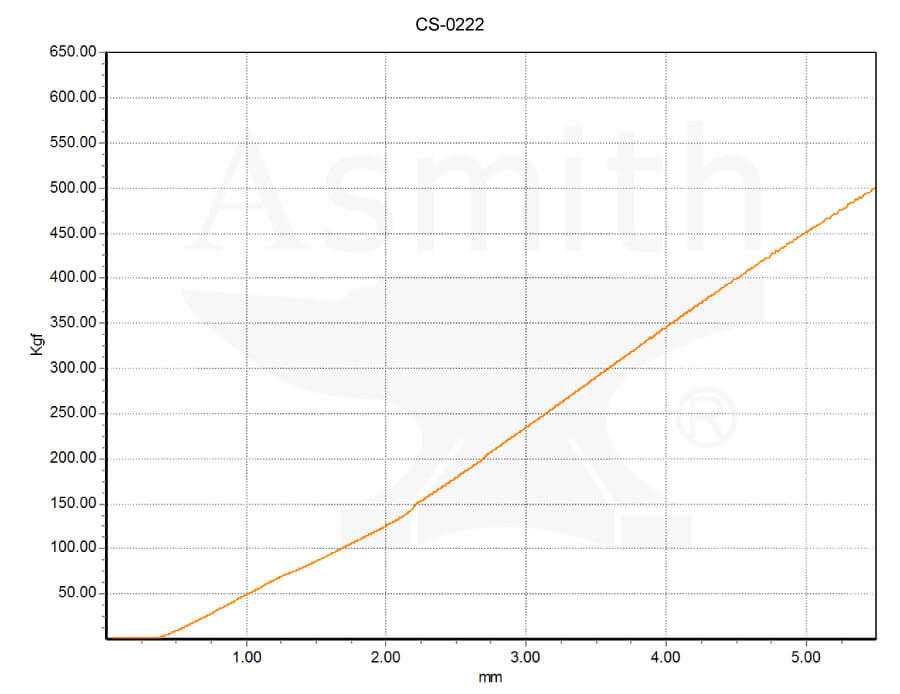

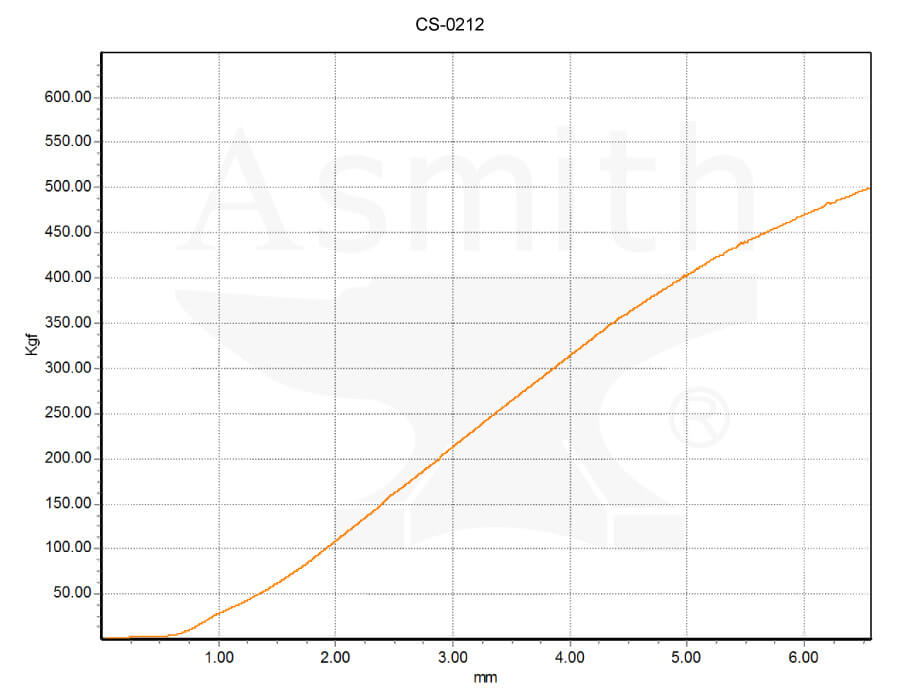

High loading 65~90 kgf. (Please refer to the load curve)

With adjustable latch rod, user can adjust the suitable compression force.

Standard lock-hole available padlocks to prevent from the accident, applicable to molds.

Each Draw Latch was treated with a shaving edge to eliminate the sharpness, so there is no need to have protective cover in the produce process.

In accordance with RoHS.

• Material-Base: FC-250 Powder coating (Black)
• Material-Bolt: S45C with heat treatment and coating with Manganese phosphate
• Material-Cushion: Chloroprene Rubber (Black)
• Material-Socket Set Nut: FCD45 Powder coating (Black)

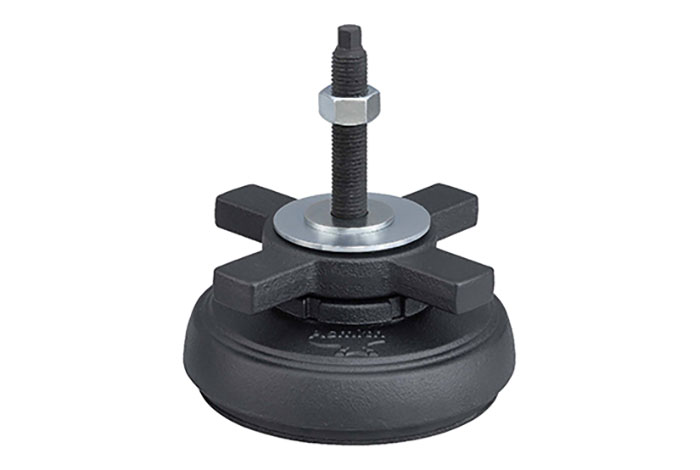

Before the installation, the mechanical foot please do not tapped hole.Automatic adjust the horizontal angle. Correctly guide the machine feet to completely fit the ground to let the mechanical stable running.

When machine loading on the heavy-duty leveling feet can use open-end wrench to adjust the machine height & horizon. (please refer to photo below)

To prevent from the vibration and improve the work environment when the machine is on. To decrease the vibration between floors when the machine is running. To ensure the precision of machinery in order to prevent from the slipping out, shockproof, non-slip, wear-resistant, oil-resistant.

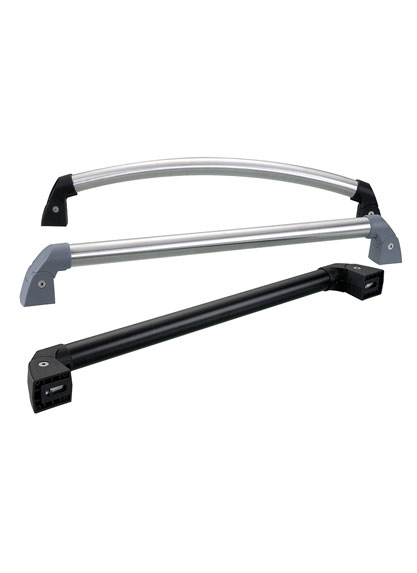

• Material-Handle : Stainless Steel(SUS304), Brushed finish.
• Material-Holder : Polyamide(PA6-GF33), Black or Silver.

ES-122/123/124 series - SUS304 (Curve)

Load capacity 100 kgf.

Holder: Patented design and install easily. The holder is waterproof(IP66) and can suit for all kind of panel with different curve angle.

he hole pitch can be adjustable within 18mm, easy to install. Working temperature is -20℃~150℃, resistance to acid, alkali, and greasiness.

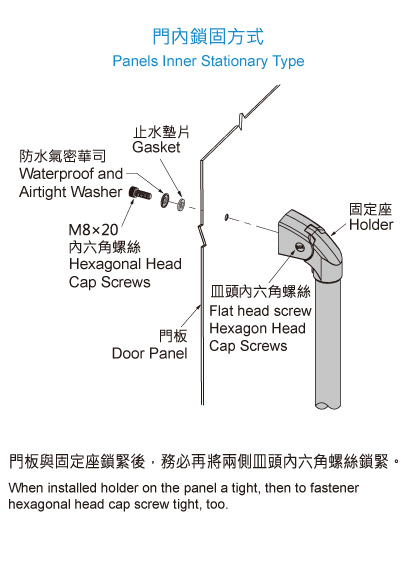

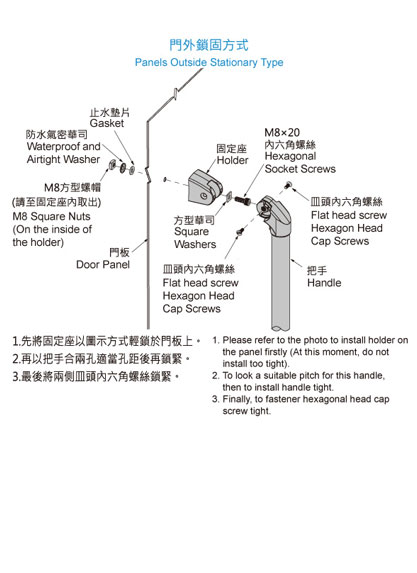

Two ways for install: 1. Inner stationary type. 2. Outside stationary type.

In accordance with RoHS.

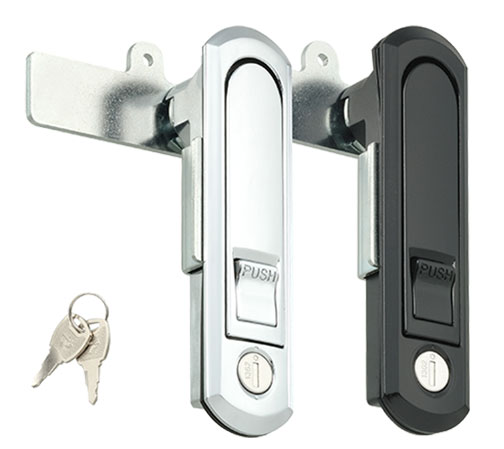

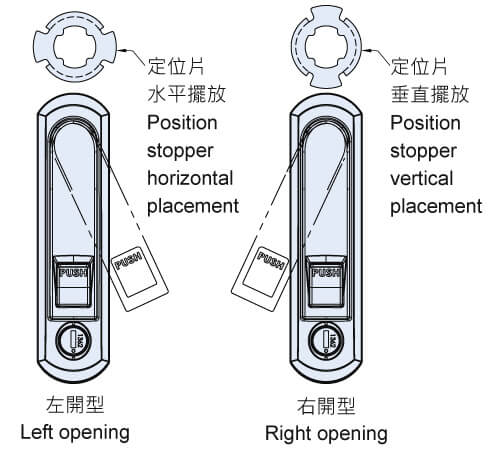

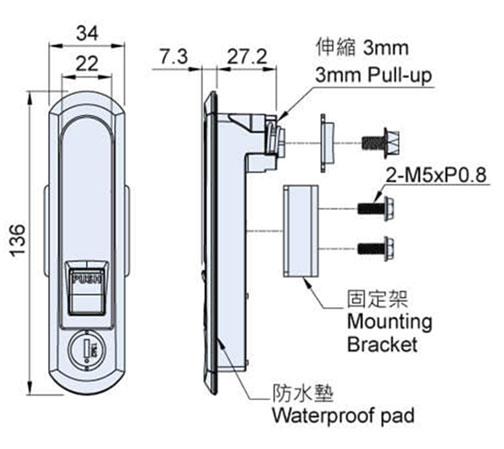

• Patent-Safety design: Push the button and the lever will rise, to prevent accident. Left and Right opening.
• When the lever is opened, the pawl moves backwards 3mm, the handle work smoothly. When the lever is closed, the pawl push forwards 3mm to enhance the panel and the cabinet compressed.
• The appearance of finish to provide customized. (MOQ: 1000pcs over)
• Dust-resistant and waterproof IP66. In accordance with RoHS.
• Material-Body & Lever : Die-cast Zinc, Nickel polish or Black coated.
